EXCAVATORS & SKIDSTEER RENTALS::

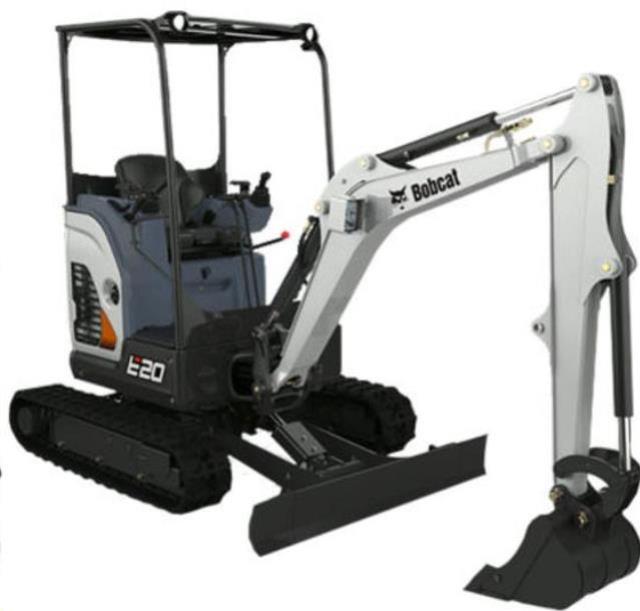

E20 (BOBCAT)

• The Bobcat E20 is a 2-ton class compact mini excavator characterized by its Zero Tail Swing (ZHS) design and a retractable undercarriage. The "Long Arm" is a standard feature on many newer E20 configurations, providing enhanced reach and digging depth without sacrificing stability in tight workspaces.
• SUMMARY OF PERFORMANCE:
• -Maneuverability: The zero tail swing allows the upper structure to rotate within the width of the tracks, making it ideal for working flush against walls or in narrow corridors.
• -Accessibility: The tracks can hydraulically retract from 53.5 inches down to 38.6 inches, allowing the machine to pass through standard backyard gates and doorways.
• -Long Arm Advantage: The long arm extension specifically increases the maximum digging depth to approximately 8.4 - 8.5 feet and reach to 14 feet at ground level.
• CORE SPECIFICATIONS:
• -Feature: Standard/Long Arm Specification
• -Engine: 13.9 hp - 15 hp Diesel (Tier 4 compliant)
• -Operating Weight: ~4,306 lbs (can vary with cab/canopy options)
• -Bucket Digging Force: 4,684 lbf
• -Arm Digging Force: 2,086 lbf
• -Rated Lift Capacity: ~1,023 lbs - 1,098 lbs
• -Travel Speed: 1.3 mph (Low) / 2.5 - 2.6 mph (High)
• -Hydraulic Flow: 7.9 gpm @ 2,610 psi
• DIMENSIONS:
• -Overall Width: 38.6 in (retracted) to 53.5 in (expanded).
• -Transport Length: 145.2 in (approx. 12 ft 1 in).
• -Height to Top of Cab: 90.4 in (approx. 7 ft 6 in).
• -Tail Swing Overhang: 0 inches.
• -Max Dump Height: 8.8 ft.
